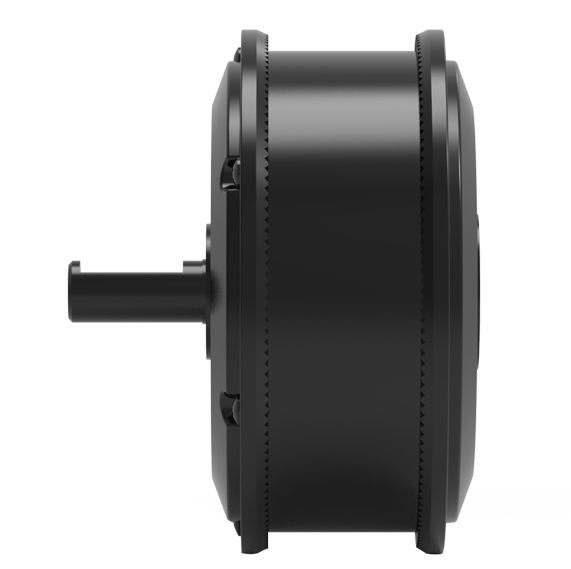

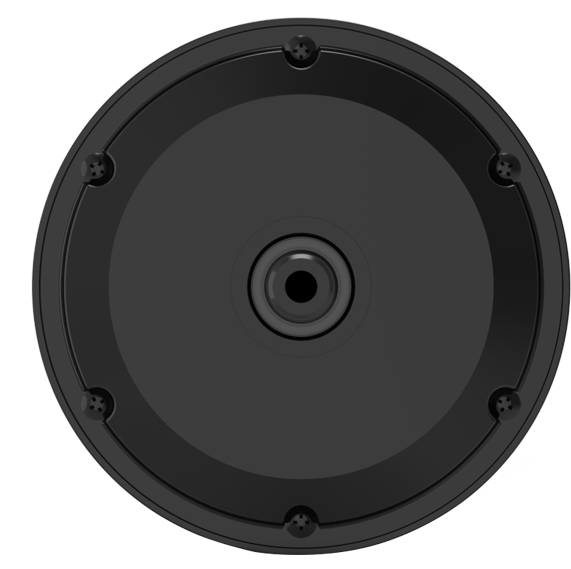

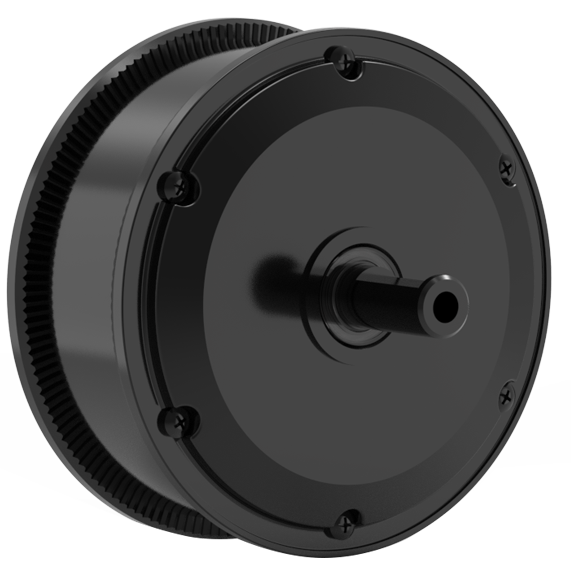

6.7＂Single-side servo motor

JINYUXING
The world's leading electric light vehicle motor expert

Product parameters:

工作電壓（V）:  21-48

額定功率（W）:  100-150

峰值功率（W）:  200-350

空載轉速（rpm）:  300-500

額定轉速（rpm）:  250-400

峰值扭矩（N.m）:  17

峰值效率（%）:  80

防護等級（IP）:  X7

絕緣等級:  B

傳感器類型:  霍爾+光編碼器

制動器類型:  電子剎

最高行駛速度（Km/h）:  10

Working voltage （V）:  21-48

Rated power （W）:  50-250

Peak power （W）:  200

Rated speed （rpm）:  200-300

No-load speed （rpm）:  150-250

Peak torque （N.m）:  25

Peak efficiency （%）:  70-80

Protection level （IP）:  X7

Insulation level:  B

Sensor type:  Hall+Optical encoder

Brake type:  Electronic brake

Maximum running speed (Km/h):  10
