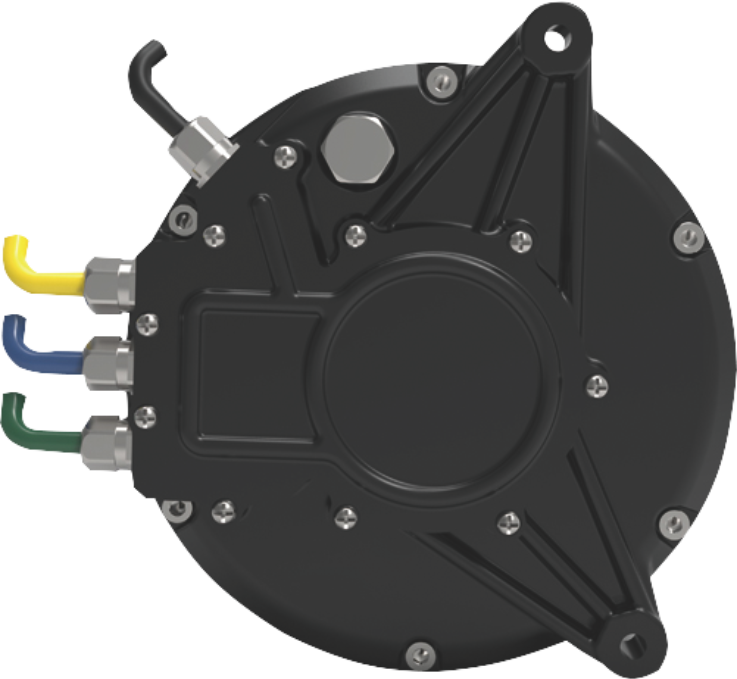

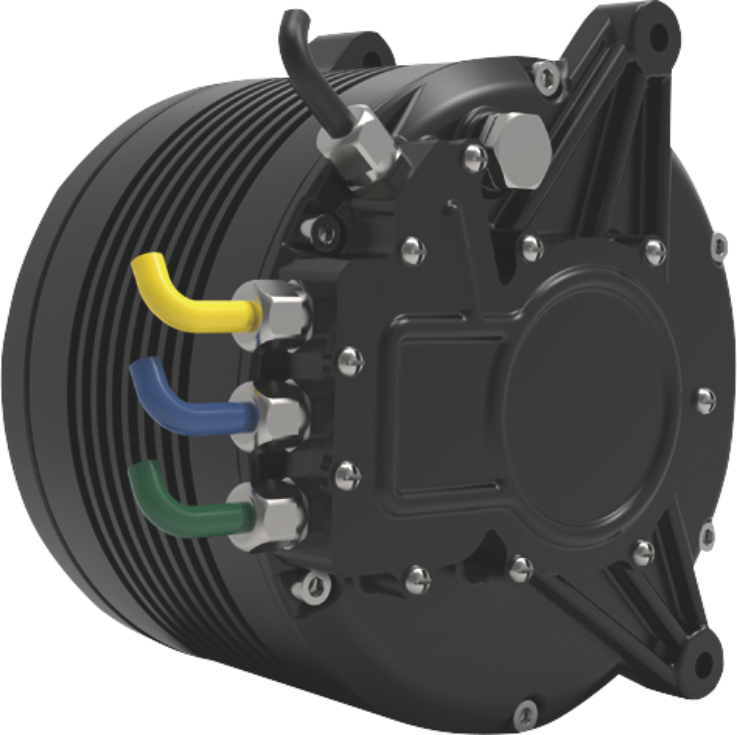

H55 Mid-drive motor

JINYUXING
The world's leading electric light vehicle motor expert

Product parameters:

工作電壓（V）:  60-96

額定功率（W）:  2000-4000

峰值功率（W）:  3000-5000

空載轉(zhuǎn)速（rpm）:  5000-7000

額定轉(zhuǎn)速（rmp）:  5400

峰值扭矩（N.m）:  40-55

峰值效率（%）:  ≥90%

防護(hù)等級（IP）:  67

絕緣等級:  H

傳感器類型:  絕對值磁編碼

溫度檢測方式:  PT1000

齒輪減速比:

Working voltage （V）:  60-96

Rated power （W）:  2000-4000

Peak power （W）:  3000-5000

No-load speed （rpm）:  5000-7000

Rated speed （rmp）:  5400

Peak torque （N.m）:  40-55

Peak efficiency （%）:  ≥90%

Protection level （IP）:  67

Insulation level:  H

Sensor type:  Absolute value magnetic encoder

Brake type:  PT1000

Gear Ratio:

Product size:

安裝孔直徑:  4-M8

軸端外徑:  Φ17(-0.05，-0.1）

外花鍵參數(shù):  6*Φ14*Φ17*4

軸端至端蓋高度:  31

輪廓最大外直徑:  Φ166

輪廓最大高度:  139.5

吊耳中心距離:  159.6

Installation hole diameter:  4-M8

Outer diameter of shaft end:  Φ17(-0.05，-0.1）

External spline parameters:  6*Φ14*Φ17*4

Height from shaft end to end cover:  31

Maximum outer diameter of contour:  Φ166

Maximum height of the profile:  139.5

Distance between lifting eye centers:  159.6
