Global

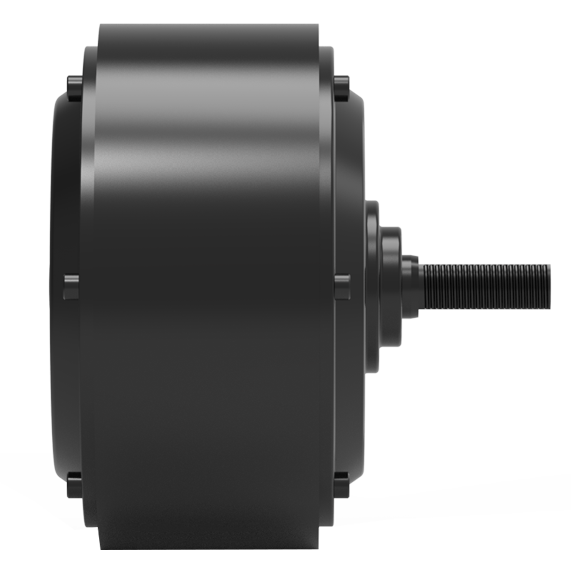

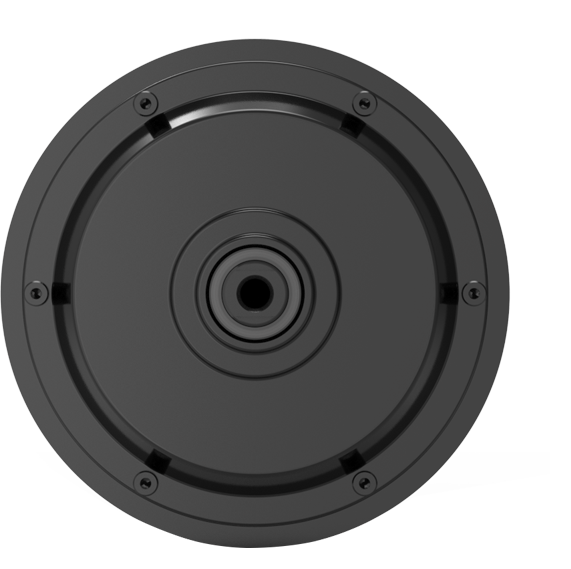

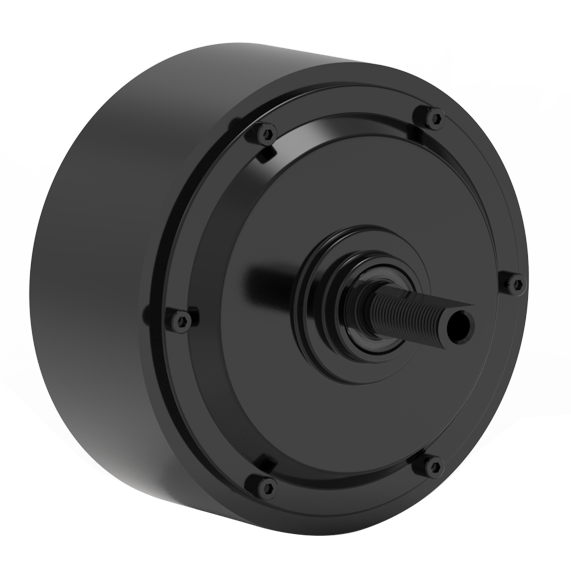

5＂Single-side rubber covered tyre motor

JINYUXING
The world's leading electric light vehicle motor expert

Product parameters:

工作電壓（V）:  24-48

額定功率（W）:  75-150

峰值功率（W）:  150-350

空載轉速（rpm）:  250-400

額定轉速（rpm）:  100-200

峰值扭矩（N.m）:  15-23

峰值效率（%）:  70-80

防護等級（IP）:  X6

絕緣等級:  B

傳感器類型:  霍爾+光磁編碼器

制動器類型:  電子剎

最高行駛速度 (Km/h):  5

Working voltage （V）:  24-48

Rated power （W）:  75-150

Peak power （W）:  150-350

No-load speed （rpm）:  250-400

Rated speed （rpm）:  100-200

Peak torque （N.m）:  15-23

Peak efficiency （%）:  70-80

Protection level （IP）:  X6

Insulation level:  B

Sensor type:  Hall+Optical encoder

Brake type:  Electronic brake

Maximum running speed （Km/h）:  5

Product size:

輪輞寬度:

輪輞材質:  鋁

輪胎裝置位置尺寸:

帶輪胎外徑:  140

電機軸軸長:  128

電機軸開檔:  39.5

電機軸出線方式:  斜出線

扁方尺寸:  14

電機軸螺紋尺寸:  M16

Rim width:

Rim material:  Aluminium

Mountiing position size of tyre:

Outer diameter of tyre included:  140

Motor shaft length:  128

Motor shaft drop out size:  39.5

Motor shaft outlet mode:  Oblique outlet

Shaft flat size:  14

Motor shaft thread size:  M16
