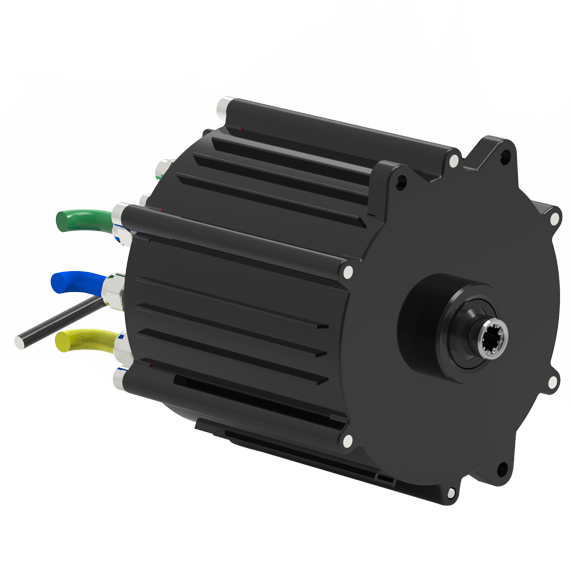

E3 Mid-drive motor

JINYUXING
The world's leading electric light vehicle motor expert

Product parameters:

工作電壓（V）:  48-72

額定功率（W）:  800-1200

峰值功率（W）:  1000-2000

額定轉(zhuǎn)速（rpm）:  4500-6000

峰值扭矩（N.m）:  17-22

峰值效率（%）:  ≥90%

防護(hù)等級（IP）:  67

絕緣等級:  H

傳感器類型:  絕對值磁編碼

Working voltage （V）:  48-72

Rated power （W）:  800-1200

Peak power （W）:  1000-2000

Rated speed （rpm）:  4500-6000

Peak torque （N.m）:  17-22

Peak efficiency （%）:  ≥90%

Protection level （IP）:  67

Insulation level:  H

Sensor type:  Absolute value magnetic encoder

Product size:

安裝孔直徑:  3-Φ6.2

軸端外徑:  Φ16.5(0-0.05)

內(nèi)花鍵參數(shù):  INT9z*1m*20R

軸端至端蓋高度:  22

輪廓最大外直徑:  Φ143.5

輪廓最大高度:  159

Installation hole diameter:  3-Φ6.2

Outer diameter of shaft end:  Φ16.5(0-0.05)

Internal spline parameters:  INT9z*1m*20R

Height from shaft end to end cover:  22

Maximum outer diameter of contour:  Φ143.5

Maximum height of the profile:  159
