Global

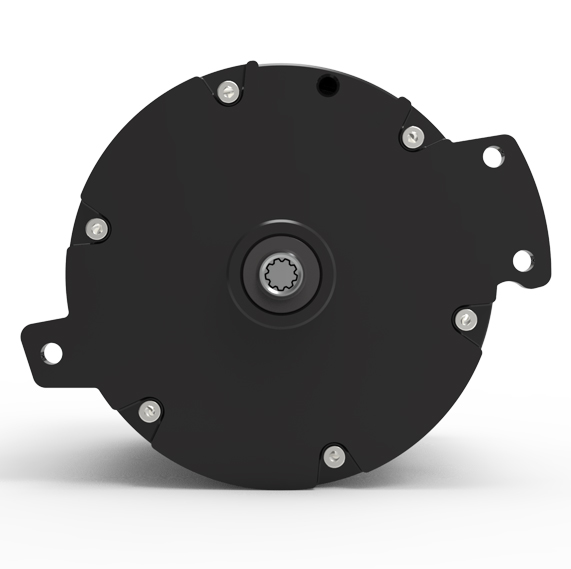

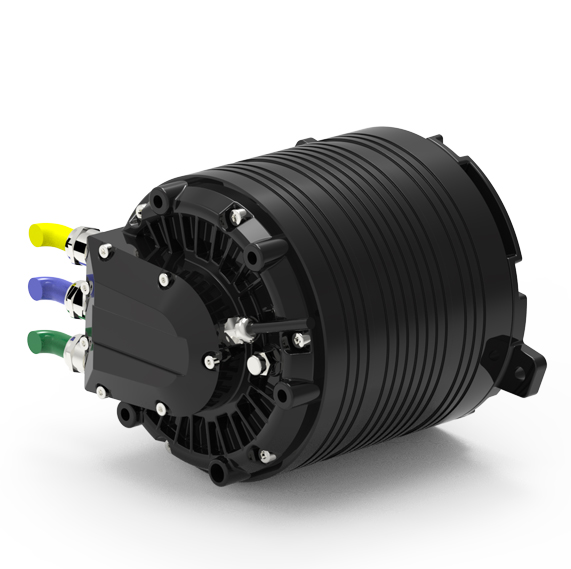

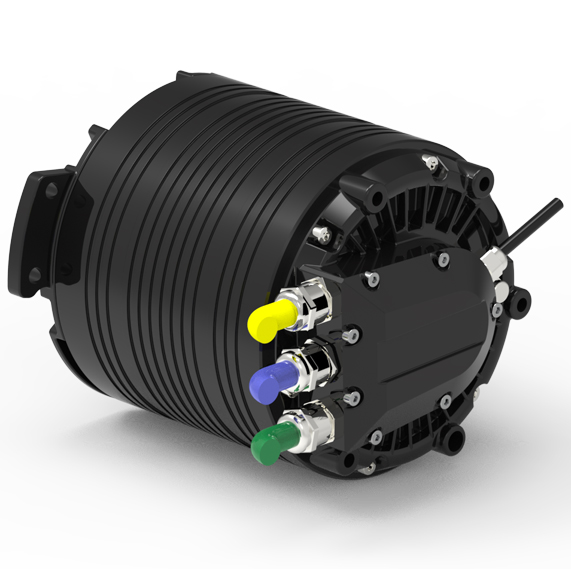

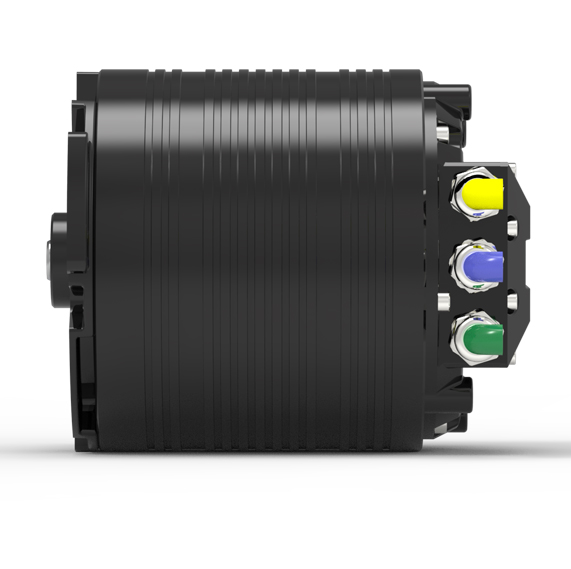

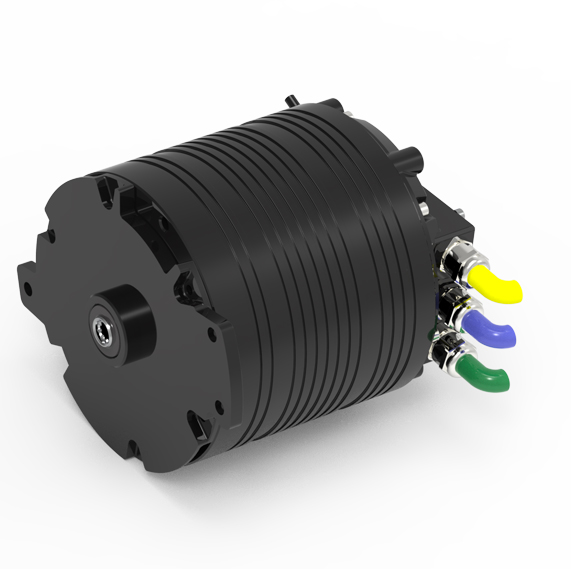

E6 Water cooled mid-drive motor

JINYUXING
The world's leading electric light vehicle motor expert

Product parameters:

工作電壓（V）Working voltage 48-72:  48-72

額定功率（W）Rated power 4000-6000:  4000-6000

峰值功率（W）Peak power 5000-10000:  5000-10000

額定轉速（rpm）Rated speed 5000-7000:  5000-7000

峰值扭矩（N.m）Peak torque 25-60:  25-60

峰值效率（%）Peak efficiency ≥90%:  ≥90%

防護等級（IP）Protection level 67:  67

絕緣等級 Insulation level H:  H

傳感器類型 Sensor type 絕對值磁編碼Absolute value magnetic encoder:  絕對值磁編碼

Working voltage （V）:  48-72

Rated power （W）:  4000-6000

Peak power （W）:  5000-10000

Rated speed （rpm）:  5000-7000

Peak torque （N.m）:  25-60

Peak efficiency （%）:  ≥90%

Protection level （IP）:  67

Insulation level:  H

Sensor type:  Absolute value magnetic encoder

Product size:

安裝孔直徑:  3-Φ8

軸端外徑:  Φ16.5(0.，-0.05）

內花鍵參數:  INT 9z*1m*20R

軸端至端蓋高度:  12

輪廓最大外直徑:  Φ160

輪廓最大高度:  196.7

Installation hole diameter:  3-Φ8

Outer diameter of shaft end:  Φ16.5(0.，-0.05）

Internal spline parameters:  INT 9z*1m*20R

Height from shaft end to end cover:  12

Maximum outer diameter of contour:  Φ160

Maximum height of the profile:  196.7
