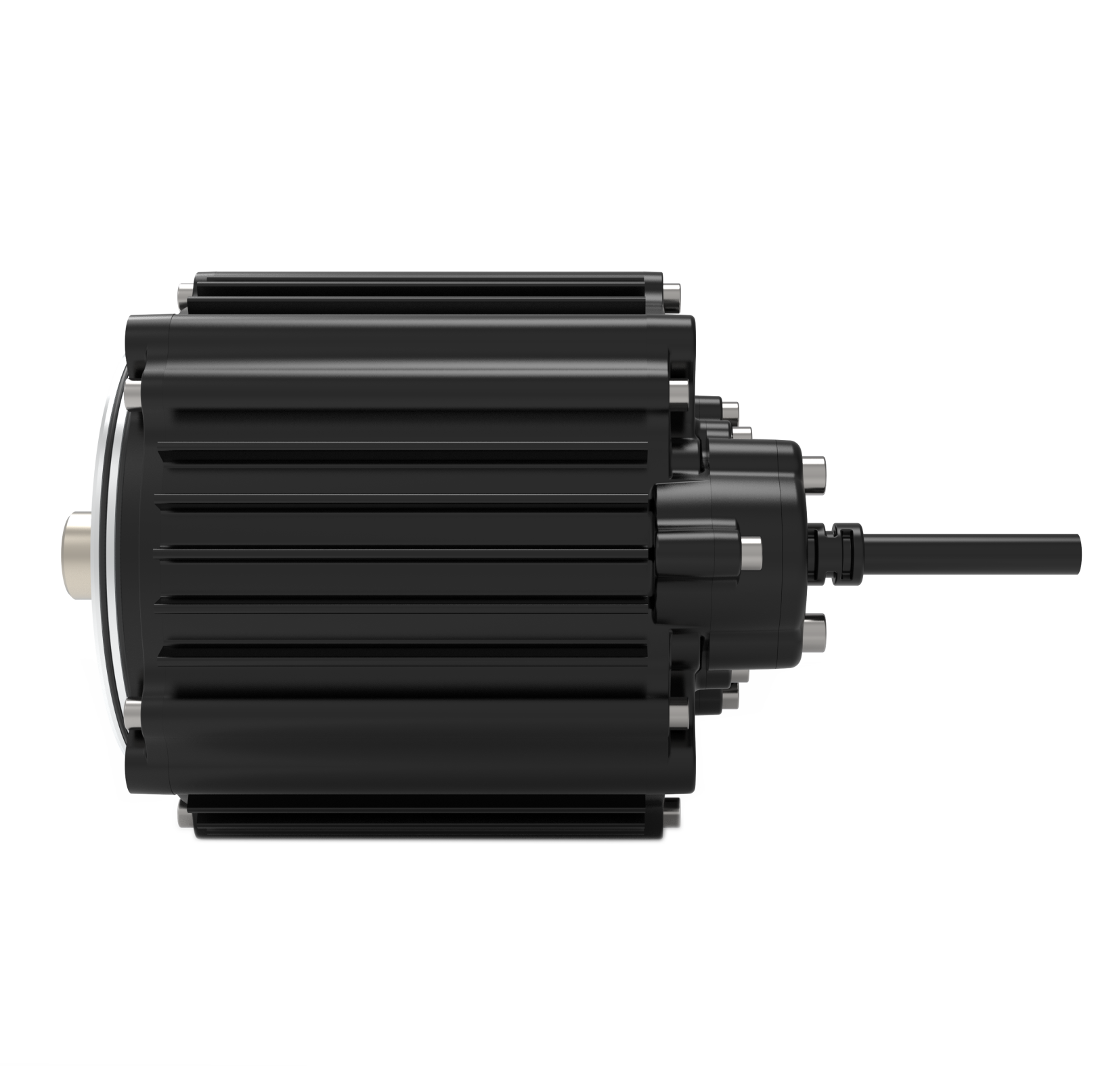

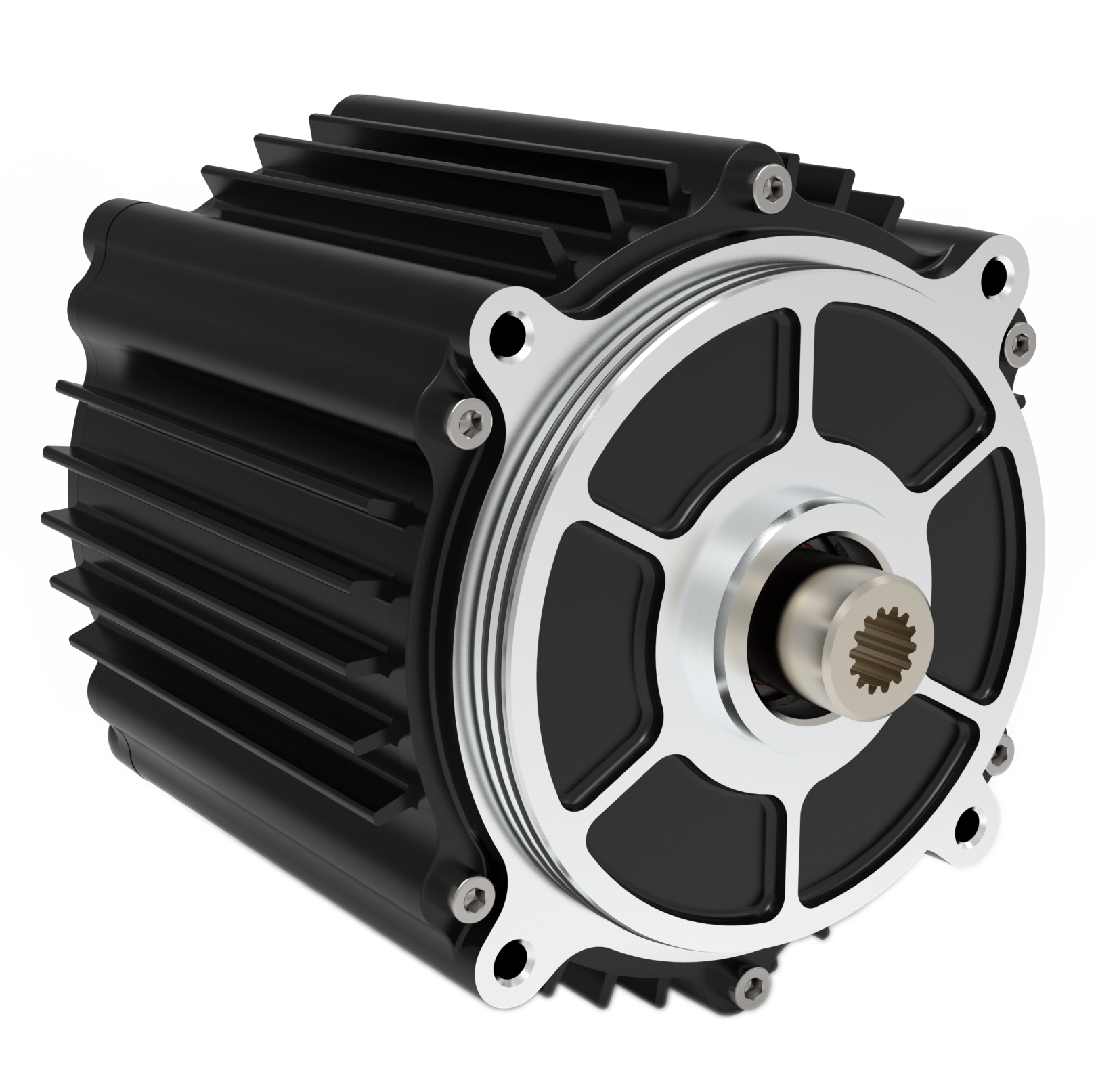

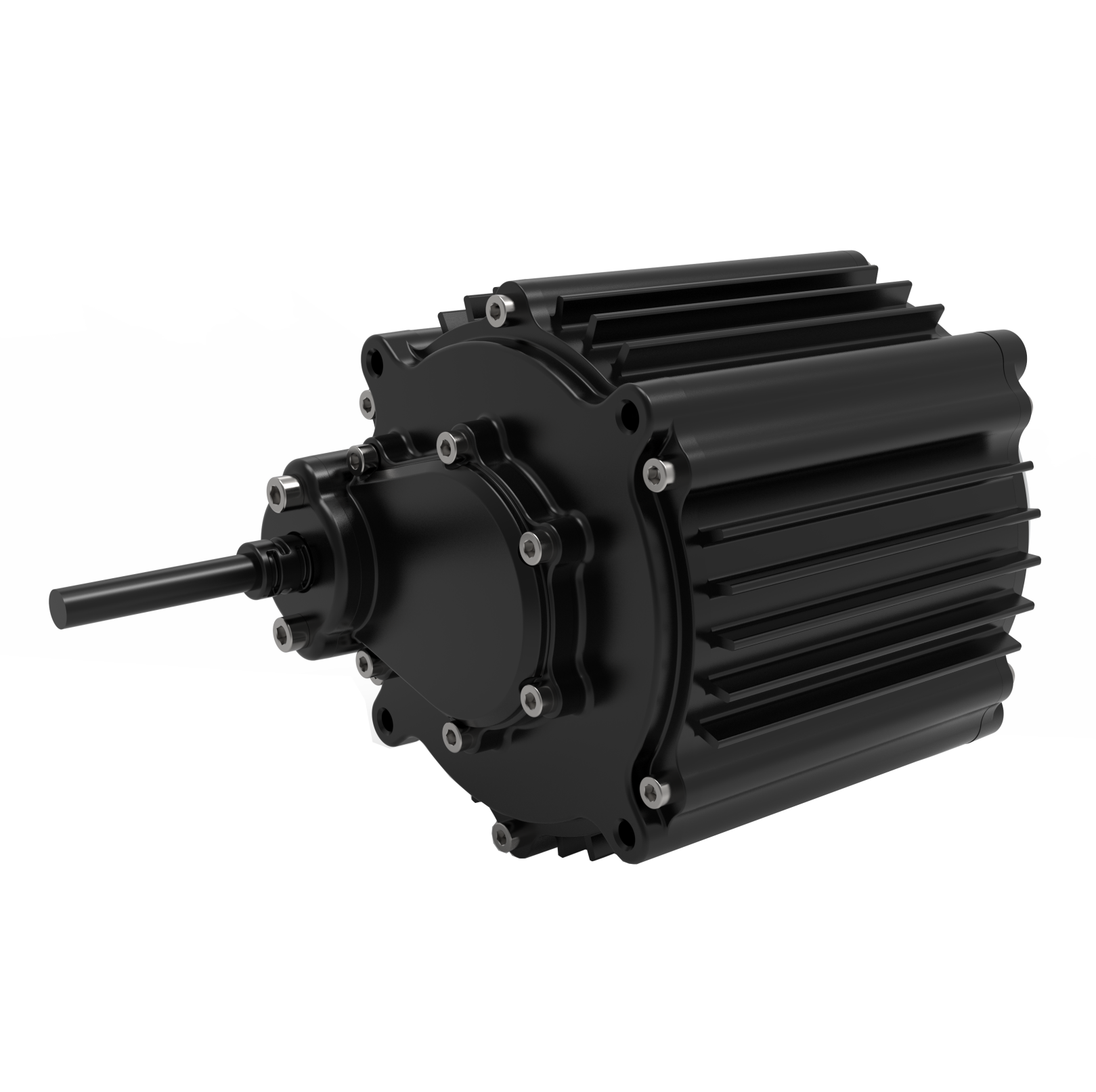

H30N Mid-drive motor

JINYUXING
The world's leading electric light vehicle motor expert

Product parameters:

?作電壓（V）:  60

額定功率（W）:  1500

峰值功率（W）:  3000

額定轉(zhuǎn)速（rpm）:  2800

峰值扭矩（N.m）:  ≥35

峰值效率（%）:  ≥90%

防護(hù)等級（IP）:  X7

絕緣等級:  H

傳感器類型:  絕對值磁編碼器

Working voltage:  60

Rated power:  1500

Peak power:  3000

Rated speed:  2800

Peak torque:  ≥35

Peak efficiency:  ≥90%

Protection level:  X7

Insulation level:  H

Sensor type:  Absolute value magnetic encoder

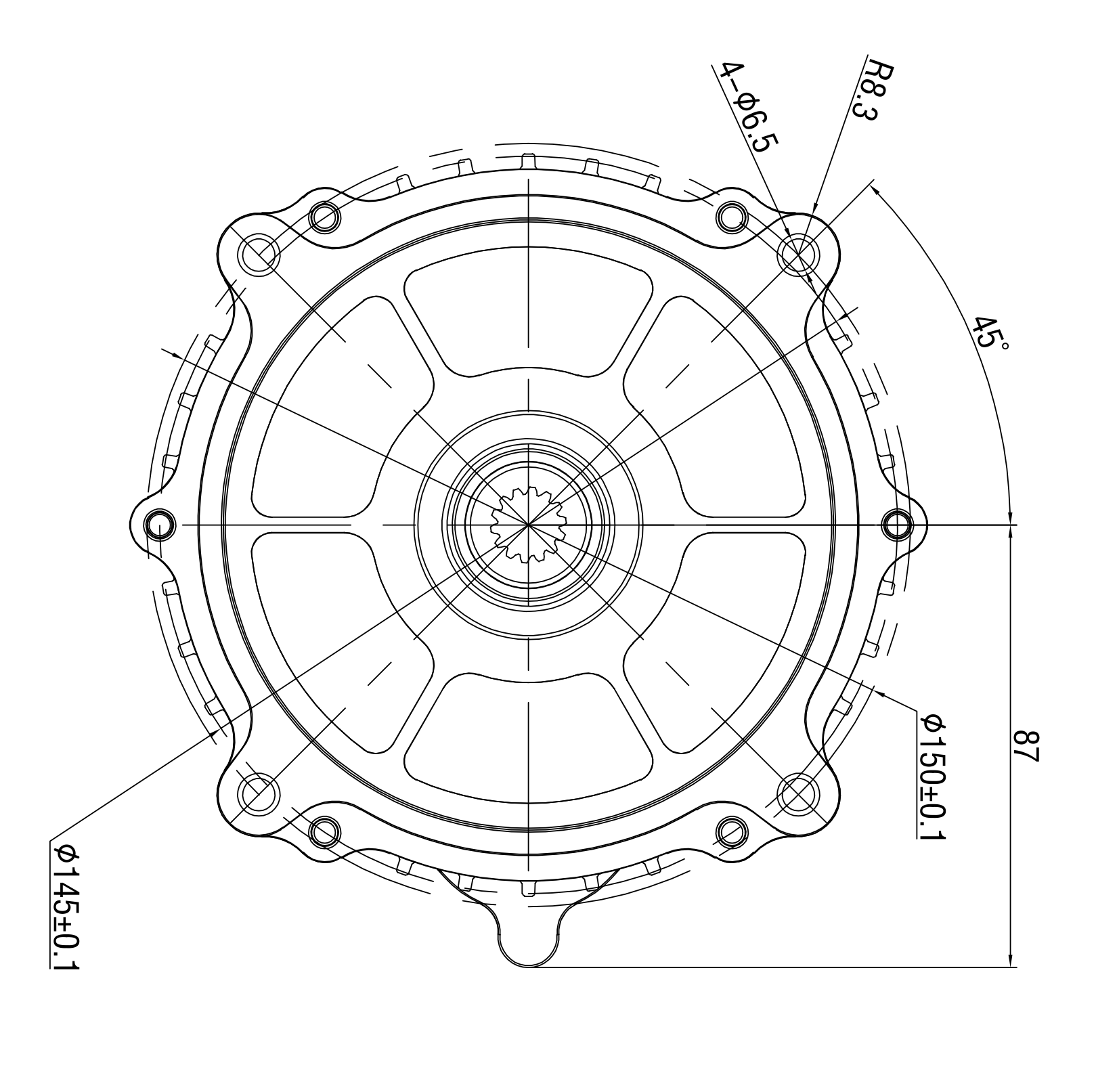

Product size:

安裝孔直徑:  4-M8

軸端外徑:  ?17（-0.05，-0.1)

外花鍵參數(shù):  6*?14*?17*4

軸端?端蓋?度:  31

輪廓最?外直徑:  ?166

輪廓最??度:  139.5

吊?中?距離:  159.6

Installation hole diameter:  4-M8

Outer diameter of shaft end:  ?17（-0.05，-0.1)

External spline parameters:  6*?14*?17*4

Height from shaft end to end cover:  31

Maximum outer diameter of contour:  ?166

Maximum height of contour:  139.5

Distance between lifting eye centers:  159.6
